Yamato Premium Solid Tyres
Excellence in Solid Tyres
Yamato Premium Solid Tyres
Quality raw materials and compounds manufactured through advanced technology formulate the layers of our premium solid tyres. The materials used are REACH compliant and have been subjected to rigorous laboratory, field and machine testing. This superior construction withstands heavy-duty services, rougher surfaces, longer distances and higher speeds with ease offering a smooth ride.
The superior heat resistance, flexibility and deflection of the compounds and strong beads to enable longer life to have improved the performance of the Yamato 3-layer premium solid tyres phenomenally. Yamato premium solid tyres provide a longer service life, reduced downtime, improved safety and enhanced overall performance, making them a preferred choice for demanding environmental and heavy-duty applications.
All products under the Yamato logo confirm to international standards and are within the parameters of ETRTO specification.
![](images/solid_tyres/Yamato_tire.webp)

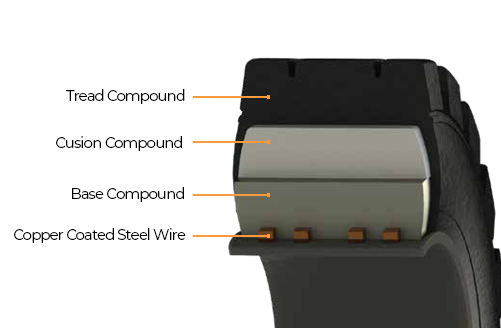

3 Layer Premium Solid Tyres
Design :
- Longest mileage and lowest energy consumption
- Maximum confirm, safety and stability
- Extremely low rolling resistance
- Highest abrasion resistance
- High-tensile creel bead wires
- Extra thick sidewall
- Great traction and cornering stability
- Coolest running temperature with very good heat dissipation
- Reduce maintenance and replacement costs. Advance formulation
Recommended Working Hours :
- Per day : 24 hours
- Overall : 2, 200 hours
![Budget Solid Tyre](./images/solid_tyres/yamato_3_layer_tyre1.jpg)
Yamato Standard Solid Tyres
Yamato Standard Solid Tyres are ideal for a variety of applications in many industries, including material handling, construction, agriculture, and others.Yamato Non-marking Tyres
These environmentally friendly Yamato Non-marking Solid Tyres have been specially constructed with a unique compounded Non-marking rubber tread.Tyre Size | Rim Size | Heel | Tyre Dimensions (mm) | Tyre Dimensions (inch) | Minimum Load Capacity (kg) | No of Pieces Per 20ft Container | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Forklift Trucks (Counter Balance) | Other Vehicles (Counter Balance) | ||||||||||||
Normal | Quick | Maximum Width |
Overall diam. ± 2% |
Maximum Width |
Overall diam. ± 2% |
Load Wheel Up To 25 km/h | Steer Wheel Up To 25 km/h | Up To 6 km/h | Up To 10 km/h | Up To 25 km/h | |||
400✕8 | 3.00 | ✓ | ✓ | 104 | 406 | 4.1 | 16.0 | 950 | 730 | 925 | 840 | 710 | 1600 |
15✕4.5✕8 | 3.00 | ✓ | ✓ | 115 | 380 | 4.5 | 15.0 | 1040 | 800 | 1040 | 945 | 800 | 1600 |
500✕8 | 3.00 | ✓ | ✓ | 120 | 457 | 4.7 | 18.0 | 1415 | 1090 | 1415 | 1285 | 1090 | 1100 |
16✕6✕8 | 4.33 | ✓ | ✓ | 153 | 414 | 6.0 | 16.3 | 1495 | 1150 | 1270 | 1150 | 975 | 1000 |
18✕7✕8 | 4.33 | ✓ | ✓ | 153 | 455 | 6.0 | 17.9 | 2145 | 1650 | 2145 | 1945 | 1650 | 800 |
600✕9 | 4.0 | ✓ | ✓ | 136 | 530 | 5.4 | 20.9 | 1885 | 1450 | 1885 | 1710 | 1450 | 640 |
21✕8✕9 | 6.0 | ✓ | ✓ | 185 | 525 | 7.3 | 20.7 | 2775 | 2120 | 2755 | 2500 | 2120 | 500 |
650✕10 | 5.0 | ✓ | ✓ | 160 | 573 | 6.3 | 22.6 | 2340 | 1800 | 2340 | 2125 | 1800 | 480 |
23✕9✕10 | 6.5 | ✓ | ✓ | 202 | 592 | 8.0 | 23.3 | 3455 | 2650 | 3160 | 2865 | 2430 | 296 |
700✕12 | 5.0 | ✓ | ✓ | 170 | 660 | 6.7 | 26.0 | 2920 | 2240 | 2920 | 2645 | 2240 | 320 |
28✕9✕15 | 7.0 | ✓ | ✓ | 216 | 694 | 8.5 | 27.3 | 3770 | 2900 | 3445 | 3125 | 2650 | 264 |
550✕15 | 4.5 | ✓ | 152 | 661 | 6.0 | 26.0 | 2430 | 1870 | 2430 | 2205 | 1870 | 310 | |
1000✕20 | 8.0 | ✓ | 251 | 1045 | 9.9 | 41.1 | 6000 | 5000 | 6000 | 5350 | 5000 | 100 | |
30✕10✕16 | 16¼ | ✓ | BOBCAT MACHINE |
